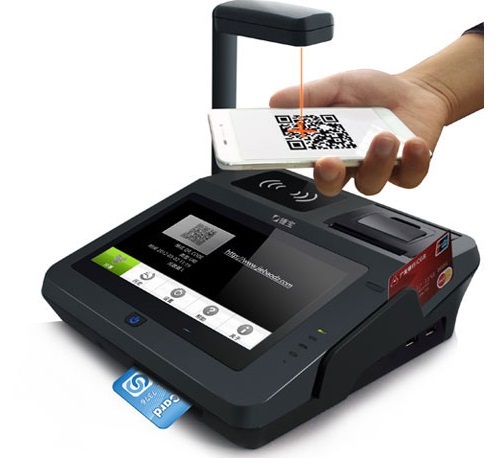

BK-JP762A Intelligent Electronic Payment Device
BK-JP762A Intelligent Electronic Payment Device
BK-JP762A Intelligent Electronic Payment Device
$450.00
- Detail
- Parameters
Features
Professional Financial Transaction Terminal:
Supporting four means of E-payment functions: QR code payment, Magnetic stripe bank cards, Financial IC cards and Contactless cards (NFC/RFID).
Multiple Data Communication :
Supporting GPRS,WiFi, Bluetooth and 3G.
Various External Interfaces :
Providing interface for password keyboard with conforming to the UnionPay standard, and interface for HDMI; Supporting SDK for customizing various of applications.
CPU
Cortex-A9 1.6GHz Dual-Core CPU
OS
Android
Model
JP762A
Brand
BK-PAY
Memory
DDR3 1GB, NandFlash 4G
Display
7 "TFT-LCD, LED backlight, 1024*600, Multi-touch
MSR Reader
Track 1/2/3, Bi-Directional ISO 7810, ISO 7811, ISO 7813
EMV Card Reader
Supports 1.8V, 3.3V, 5V Card Supports Memory Card, CPU Card EMV Ready, PBOC 3.0, ISO 7816 Standard
Contactless Card Reader
13.56MHz, 14443 Type A/B Supports Point-to-Point Communication
SAM Slot
Micro SD*1（32G at most），SIM*1，PSAM*2
Communication
WIFI IEEE 802.11b/g/n，802.3，802.3u, 3G
Printer
High-speed thermal printer, Paper width: 58mm, Paper roll diameter: 40mm
Camera
5 Mega Pixel Camera (External pole)
Power Supply
DC12V *1
Peripheral Port
USB, RS232, RJ-45
Battery
7.4V 2200mAh
Certificate
EMV L1&L2, Visa Paywave, MasterCard Paypass, China UnionPay
Price
$450.00
Dimension
220*215*75mm
Weight
1.0kg
