Overview

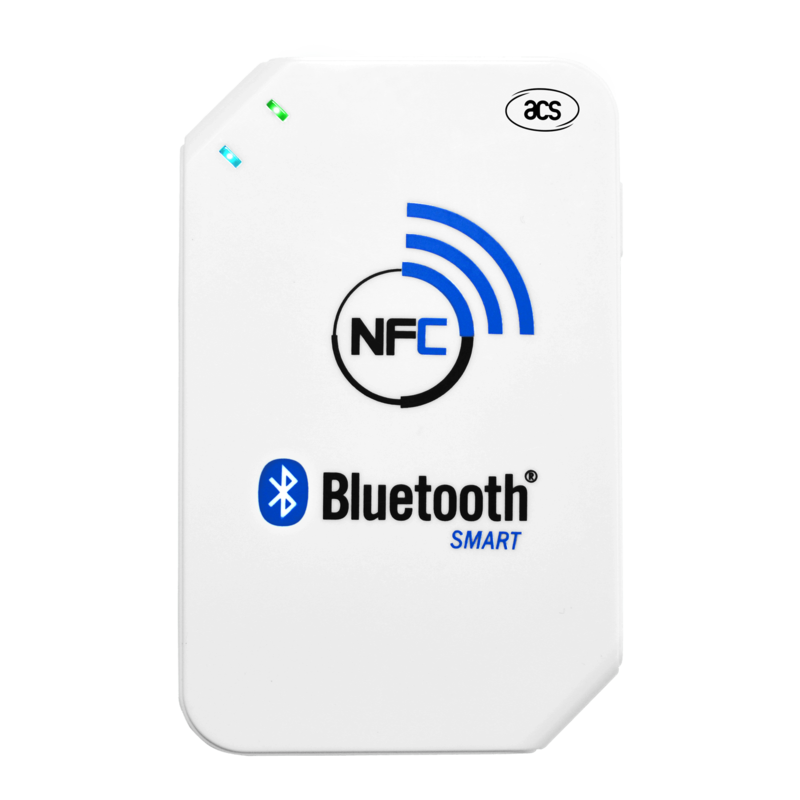

ACR1255U-J1 NFC Secure Bluetooth® NFC Reader is designed to facilitate on-the-go smart card and NFC applications. It combines the latest 13.56 MHz contactless technology with Bluetooth® Smart connectivity.

ACR1255U-J1 supports ISO 14443 Type A and B smart cards, MIFARE®, FeliCa®, and most NFC tags and devices compliant with ISO 18092 standard. This makes ACR1255U-J1 ideal for a broad range of solutions, such as hands-free verification for physical and logical access control, and inventory tracking. ACR1255U-J1 has two interfaces: Bluetooth Smart (also known as Bluetooth Low Energy or BLE) for pairing with mobile devices, and USB Full Speed for PC-linked operation. Additionally, it can read/write at a speed of up to 424 Kbps for contactless smart card and NFC device access.

With a compact design and a rechargeable Lithium-ion battery for power, ACR1255U-J1 is extremely portable and convenient for use anytime, anywhere with most Bluetooth-enabled smartphones and tablets.

To save valuable cost and time, the firmware of ACR1255U-J1 could conveniently be upgraded on the field. This enables users to cope with the fast-changing technology for their applications, and suit different scenarios.

With Bluetooth Smart technology and AES-128 encyrption, ACR1255U-J1 connects securely and wirelessly to any device running on Android™ 4.3 and later, iOS 5.0 and later, Windows® 7 and later, and Mac OS® 10.7 and later.

For PC-linked operation, ACR1255U-J1 could easily be installed for use with any personal computer running on Windows® operating system because it is PC/SC and CCID-compliant. Its drivers are also compatible with Linux® and Mac OS®.

With its numerous features, the ACR1255U-J1 is the perfect reader for your smart card solution.

Should you wish to try out the demo apps for ACR1255U-J1, please download the app from Google Play and App Store.

Features

l Bluetooth® Smart Interface

l USB-Powered (PC-linked mode):

u USB 2.0 Full Speed Interface

u CCID Compliance

u Firmware Upgradeable

u Application Programming Interface:

Ø Supports PC/SC

Ø Supports CT-API (through wrapper on top of PC/SC)

l Battery-Powered:

u Powered by a Lithium-ion battery (rechargeable through PC-linked mode)

l Smart Card Reader:

u Built-in antenna for contactless tag access, with reading distance of up to 60 mm (depending on tag type)

u Supports ISO 14443 Part 4 Type A and B cards

u Supports MIFARE® and MIFARE® DESFire®

u Supports FeliCa®

u Supports ISO 18092 Tags (NFC Tags)

u Built-in anti-collision feature (only one tag is accessed at any time)

u NFC Support:

Ø Card reader/writer mode
