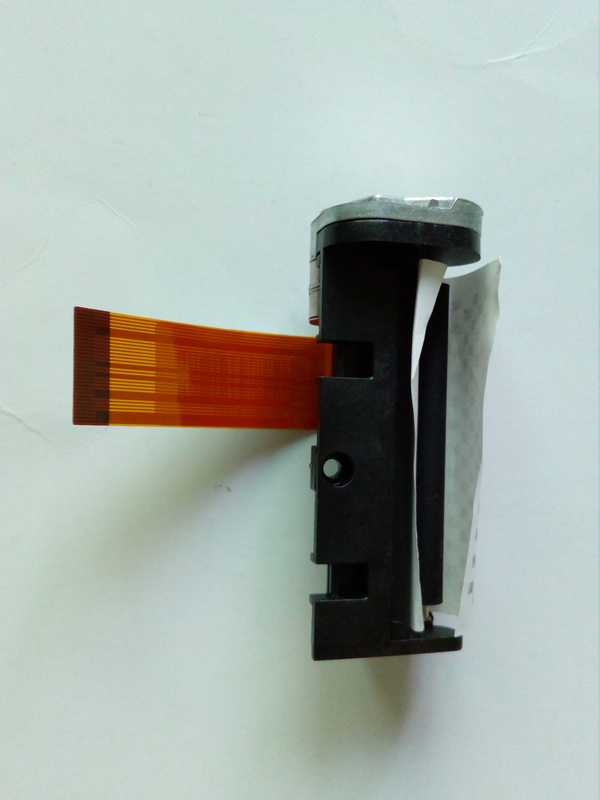

S90 POS Printer
S90 POS Printer
S90 POS Printer
- Detail
- Parameters
Introduction:
1. Low voltage supply
The voltage used to drive the thermal printer head is equal to the logic voltage, or is driven by a 5 V single power line, the range of operating voltage is 4.2V-8.5V, so four to six NI-Cd batteries or Ni-MH batteries can also be used. Two li-ion batteries can be used.
2. Compact and lightweight design
The mechanism is compact and light, dimensions: 67.7mm (width) * 24.9mm (depth) * 26mm (height)
3. Printing with high resolution
A high-density printer head of 8 dots/mm makes the good printing quality
4. High speed printing
According to driving power and sensitivity of thermal paper, set different printing speed required. Printing speed is 70 mm/ s (max.)
5. Easy paper loading
Detachable rubber roller structure makess the paper loading easier
6. Low noise
Thermal line dot printing is used to guarantee low noise printing.
Specification:
Print method | Thermal dot line printing |
Dots per line | 384 dots |
Resolution | 8 dots/mm |
Print width | 48 mm |
Paper width | 57.5±0.5mm |
W * D * H（mm） | 68*24.4*25.6 |
Maximum printing speed | 70mm/s |
Heater element pitch | 0.125mm |
Paper feed pitch | 0.0625mm |
Head temperature detection | Via thermistor |
Out-of-paper detection | Via photo interrupter |
Life span (at 25℃ and rated energy) Activation pulse resistance Abrasion resistance | 100 million pulses or more (print ratio=12.5%) 50 km or more |
Operating temperature range (℃) | 0～50 |
Operating humidity (RH) | 20％～85％ |
Storage temperature range (℃) | -25～＋70 |
Storage humidity（RH） | 5%～90% |
Application:
l Cash registers
l EFT POS terminals
l Gas pumps
l Portable terminals
l Measuring instruments and analyzers
l Taxi meters
