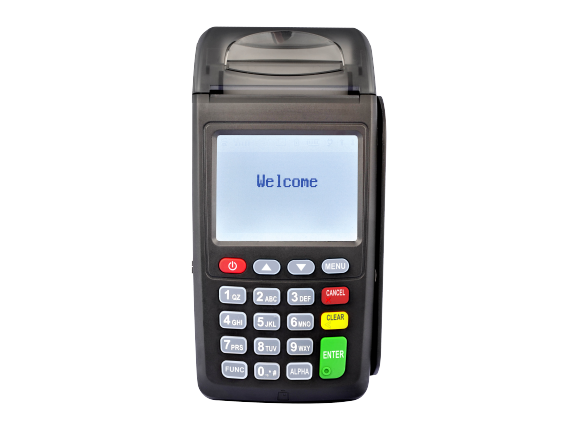

NEW7210 is a low cost, high performance and multiple functionhold terminal. The terminal adopts leading 32-bit CPU, largememory, which supports multiple tasks and multiple applications.
CPU
32-bit secure CPU, ARM11,
OS
Linux
Model
NEW7210
Brand
NEWPOS
Memory
128MB NAND FLASH, 64MB DDR SDRAM
Display
2.8 inch,320*240 TF
MSR Reader
Track 1 / 2 / 3, bi-directional, ISO7812
EMV Card Reader
1 user card (EMV4.2), supports SLE4442 / SLE4428 memory card
Contactless Card Reader
ISO / IEC14443,Type A / B, Mifare® Compliant Maximum effective distance up to 4cm 4 RF Indicators: Red Yellow, Blue, Green
SAM Slot
2 (optional 3) PSAM slots, compliant with ISO7816; Supports PPS protocol, up to 300kbps
Communication
GPRS / CDMA / Wi-Fi/ GPRS & Wi-Fi, supports full SSLv2/3 T
Printer
Thermal graphic printer, Speed: 18 lps Standard paper roll: 58mm (2.25 in.)
Power Supply
Input: 100 ~ 240VAC, 50Hz/60Hz; Output: 5VDC, 1A
Peripheral Port
1USB OTG
Battery
Li-Ion 3.7V/2200mAh
Certificate
PCI PTS 3.x MasterCard PayPass Visa payWave EMV PBOC
